They use a spinning impeller to push water, creating flow and pressure.
If you want a healthy tank, you need to know how aquarium water pumps work. I’ve installed and tuned pumps on small betta bowls and full reef systems. This guide dives deep into the hardware, the science, and my field tips. You’ll learn how to size, set up, and care for your pump so your fish and corals thrive.
How aquarium water pumps work: the core mechanics
At the heart is a small motor that spins a magnet. The magnet drives an impeller, which is a tiny fan in a casing. Water enters the intake, the impeller pushes it forward, and pressure builds at the outlet. The result is steady flow through your filter, pipes, and tank.
Most hobby pumps use a magnetic drive. There is no direct metal shaft into the water. That keeps things safe and reduces leaks. Think of it like a water escalator. The impeller grabs water and moves it up and out, one scoop at a time.
Head height fights your pump. Every inch of lift and every bend steals some energy. That is why the same pump can give 600 GPH at zero head, but much less at four feet. Knowing how aquarium water pumps work helps you match the pump curve to your system.
Types of aquarium water pumps
Submersible pumps sit in the water. They are easy to install and great for sumps. They add a bit of heat to the water. They are quiet when placed on a soft pad.
External pumps sit outside the tank or sump. They handle higher head and large systems. They run cooler for the water. They need careful plumbing to avoid leaks.
Powerheads and wavemakers move water inside the tank. They keep debris off the sand and bring fresh water to corals. Return pumps send water from the sump back to the display. DC pumps have speed control and use less power. AC pumps have simple on/off control and run for years.
If you want to master how aquarium water pumps work, study these types. Each plays a role in flow, filtration, and gas exchange.
Key specs that matter: flow, head, and turnover
Flow rate is how much water the pump can move in an hour. It is often shown as GPH or LPH. Head height is how high the pump pushes water against gravity. Pump curves show flow at different heads.
Turnover is how many times your tank volume moves each hour. A simple guide is helpful.
- Freshwater community tanks: 5 to 8 times per hour.
- Planted tanks: 4 to 6 times per hour.
- Reef tanks: 10 to 20 times per hour in total flow.
Plumbing affects flow. Every elbow, valve, and small pipe eats head. A larger return line can boost flow without a bigger pump. When you grasp how aquarium water pumps work with head loss, you avoid noisy, weak flow.

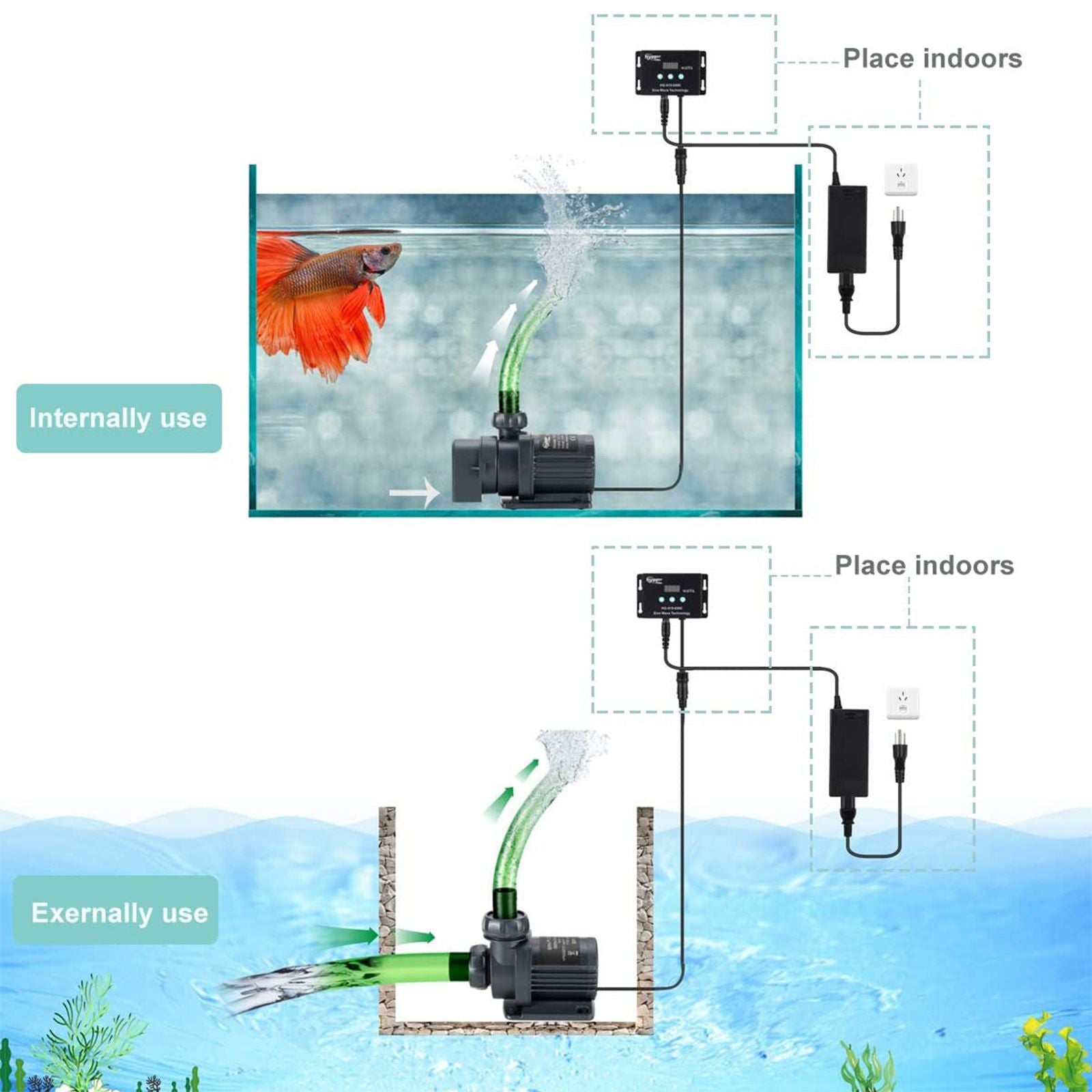

How pumps fit into your system
In a sump setup, water drains to the sump, gets filtered, and the return pump sends it back up. In a canister setup, the pump pulls water from the tank, pushes it through media, and returns it. Some gear, like UV or chillers, needs a set flow to work right.
Powerheads handle in-tank flow. They bring oxygen to fish and corals. They keep waste moving to the filter. This is why how aquarium water pumps work affects every part of water quality. Good flow means stable temp, strong biofiltration, and clear glass.
I like to place the return outlet near the surface. That breaks the film and boosts gas exchange. Aim powerheads to avoid dead spots behind rocks and wood.
Installation and setup: step-by-step
- Plan your flow path. Measure head from sump waterline to the return outlet.
- Dry fit plumbing. Use unions near the pump for easy removal.
- Add a valve on the return line to fine tune flow.
- Place the pump on a silicone mat to cut noise.
- Prime external pumps by filling the intake line and housing.
- Avoid tight elbows right at the inlet. Give the pump a straight run.
- Make a drip loop on the power cord. Use a GFCI outlet for safety.
- Start the pump and check for leaks, rattles, or microbubbles.
Once you see how aquarium water pumps work during startup, small tweaks make a big difference. If the pump chatters, you may have air in the line. Bleed the air and support the pipes to stop vibration.
Maintenance, troubleshooting, and safety
Clean the impeller and volute every month or two. A quick soak in warm water and vinegar loosens calcium. Rinse well before putting it back. Check the intake screen so snails or plant bits do not clog it.
Watch for cavitation. It sounds like a sharp rattle or hiss. It happens when the pump starves for water. Fix it by raising the sump level, clearing the intake, or using a larger inlet hose.
Never run a pump dry. The heat can warp the impeller. Keep a spare impeller on hand for long trips. Over the years, I learned that a simple swap can save a reef. Knowing how aquarium water pumps work lets you spot issues early and act fast.
Energy use, noise, and heat
DC pumps shine for control and lower watts per flow. They can ramp down at night to cut power and noise. AC pumps cost less and are very tough, but they draw steady power.
Submersible pumps add heat to the water. In warm rooms or reef tanks, that can matter. External pumps dump less heat into the tank water. Rubber feet, soft hoses, and solid stands all cut hum.
Look at watts per GPH when you shop. It tells you how efficient the pump is. If you care about how aquarium water pumps work for a green home, match the pump to your real head and plumbing.
Sizing examples and simple math
Example 1: 40-gallon community tank with a hang-on filter and a small powerhead. Target 5 to 8 times turnover. Aim for 200 to 320 GPH total in-tank flow. One 240 GPH powerhead with the filter return often does the job.
Example 2: 75-gallon planted tank with a canister. Target 4 to 6 times. Aim for 300 to 450 GPH at your real head. If the canister is rated 370 GPH but loses 25% in media, expect about 275 GPH. Add a small powerhead if you see dead spots.
Example 3: 90-gallon reef with a sump at 4 feet of head. Return pump flow can be 3 to 5 times tank volume. Aim for 270 to 450 GPH at 4 feet. In-tank flow from wavemakers should bring total to 1,500 to 2,000 GPH. This is where how aquarium water pumps work with head loss and pump curves really counts.
Basic math tip: Actual flow equals rated flow times a head-loss factor. Bends, small pipes, and long runs raise loss. Use one size larger pipe on the return when you can. It often gives you free flow without more watts.
Frequently Asked Questions of how aquarium water pumps work
How aquarium water pumps work in simple terms?
A motor spins a magnet that drives an impeller. The impeller pushes water from the intake to the outlet, building flow and pressure.
Do I need to prime my pump?
Submersible pumps do not need priming because they sit in water. External pumps often need priming to remove air from the housing and intake.
How often should I clean my pump?
Clean the impeller and housing every 4 to 8 weeks. Heavy salt or hard water may need more frequent care.
What is head height and why does it matter?
Head height is how high the pump must push water. More head means less flow, so choose a pump that meets your real head.
Can one pump run my whole system?
Yes, a return pump can feed your sump and gear with a manifold. Make sure the flow and head cover all devices at their needed rates.
Why is my pump noisy or rattling?
Noise often comes from air, a worn impeller, or vibration. Bleed air, replace the impeller, and add soft mounts to fix it.
How do I know if my pump is too strong?
Look for microbubbles, sand storms, or stressed fish. If so, throttle the return slightly or redirect flow to spread it out.
Conclusion
A good pump is the quiet heart of your tank. When you understand how aquarium water pumps work, you can choose the right type, size it well, and keep it running smooth. Small setup details protect your fish, save power, and extend pump life.
Try one upgrade this week. Reroute one tight elbow. Add a union. Clean the impeller. Your water will show the change fast. Want more guides like this? Subscribe, ask a question, or share your setup so we can help you fine-tune it.
