The right setup is 800–1000 watts, split across multiple controlled heaters.
If you keep a large tank, stable heat is life support. I have set up, tuned, and rescued many 180s. In this guide, I share how to pick and place the best aquarium heater for 180 gallon tank, how many watts you need, and how to avoid costly mistakes. You will get clear steps, tested tips, and real numbers that work.
How many watts does an aquarium heater for 180 gallon tank need?
Sizing depends on the room, the target temp, and flow. You do not heat a number. You heat water in a real space. That space fights you.
Use this simple rule many pros use:
- For a 5 to 7 degree Fahrenheit rise, use 3 to 4 watts per gallon.
- For a 10 degree rise, use 4 to 5 watts per gallon.
- For a 15 to 20 degree rise, use 5 to 6 watts per gallon.
Now put it to work on a 180:
- Mild home, 72 to 78 degrees. Aim for 540 to 720 watts.
- Cool room, 68 to 78 degrees. Aim for 720 to 900 watts.
- Cold basement, 60 to 78 degrees. Aim for 900 to 1200 watts.
Do not use one huge heater. Use two or three units. This gives even heat and a backup. A good aquarium heater for 180 gallon tank is two 300 to 500 watt heaters on a controller. In my mixed reef 180, two 500 watt titanium heaters hold 78 degrees in a 64 degree room.
Tip from the field: Check your actual room low at 5 a.m. on the coldest week. Size for that. Your fish do not care what the thermostat says. They care what happens at night.
Best types of heaters for a 180 gallon system
The best aquarium heater for 180 gallon tank should be strong, safe, and easy to control. Here are the main types and how they fit big tanks.
- Titanium heaters. Tough, crack proof, and great for saltwater. Often need a separate controller. My go to for 180s.
- Polymer or PTC heaters. Self limiting. Safer by design. Good choice if you want lower risk of stuck on.
- Glass submersible heaters. Cheap and simple. Fine as a backup, but glass can crack and drift.
- Inline heaters. Plumbed on the return line. Keeps the display clean. Needs correct flow and space.
- Sump heaters. Best place for big systems. Hide the gear and keep heat near the return pump.
An aquarium heater for 180 gallon tank that runs in saltwater should be titanium or polymer. Salt eats cheap metal parts. Use plastic guards to stop fish burns and to protect the heater.
Placement and installation for even heat

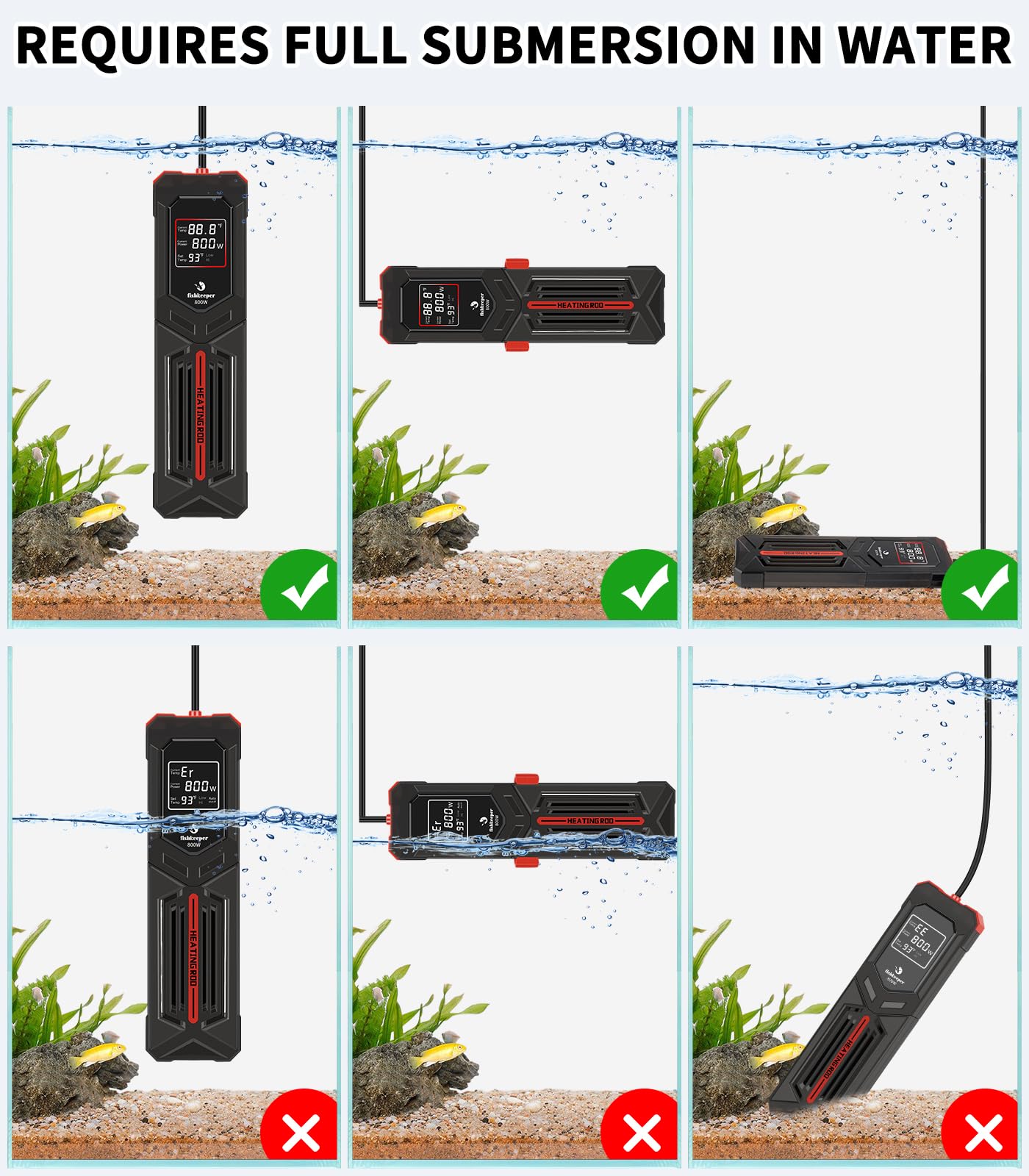

Good placement makes more difference than raw watts. You want constant flow over the heater and no dry runs.
- Put heaters in the sump near the return pump. This pushes warm water through the tank.
- Mount horizontal or at a slight angle low in the water. Heat rises, so this helps even spread.
- Keep heaters off the sand and rocks. Use a guard and a solid mount.
- Keep water above the minimum line at all times. Never run a heater in air.
If you place two heaters, split them. One in the first sump chamber with strong flow. One in the last chamber near the return. This layout saved my 180 when a baffle clogged. The second heater kept heat moving.
Controls, redundancy, and safe set points
A controller is cheap insurance. It stops a stuck on heater from cooking your fish.
- Use an external controller for any aquarium heater for 180 gallon tank. Set the controller to your target, like 78.
- Set the heater’s own dial a bit higher, like 79 to 80. The controller stays in charge.
- Use two or three smaller heaters, not one big one. If one fails, the others hold the line.
- Add two temp probes. One in the sump, one in the display. Check both.
I have seen both fail types. A heater stuck on will spike fast. A heater stuck off will crash slow. A controller cut the first and an extra heater fixed the second. That is why I never run a 180 without a controller and a backup heater.
Freshwater vs reef needs
Your species sets the temp plan and the gear pick.
- Freshwater community tanks often sit at 75 to 78. Cichlids run warmer. Plants like stable heat and good flow.
- Reef tanks like 77 to 79. Corals hate swings. A reef aquarium heater for 180 gallon tank must react fast and resist salt.
For reef systems, titanium rules. In freshwater, a high grade glass unit can work. But in both, a controller plus dual heaters gives the best safety net.
Seasonal and climate planning
Think ahead to the coldest week and the hottest week. That is where tanks fail.
- If your room drops below 65 at night, size near 900 to 1200 watts total.
- If summers run hot, add a fan on the sump or plan for a chiller.
- Night drops can be one to two degrees. That is fine. Big swings are not.
If you lose power, heat loss is fast in a big tank with lots of flow and surface area. Wrap the sump with a moving blanket. Cover the display. This trick held my 180 within two degrees for six hours one winter.
Maintenance and troubleshooting
A little care keeps heaters honest. Treat them like brakes on a car.
- Clean monthly. Wipe off slime and calcium. Use a mild vinegar bath if needed.
- Test calibration. Compare to a trusted digital thermometer. Note the offset.
- Replace weak parts. Old suction cups fail. Use clamps or holders.
- Swap heaters every two to three years. They drift and wear out.
Common issues and quick fixes:
- Temp keeps dropping. Check flow over the heater. Add a second unit.
- Temp overshoots. Controller differential is too wide. Tighten it to 0.5 to 1 degree.
- Heater clicks but no heat. It may be stuck off. Replace at once.
An aquarium heater for 180 gallon tank that gets regular checks will run steady. Put a five minute check on your weekly list.
Energy use and cost control
Big tanks can sip power if you plan well.
- Use lids to cut heat loss. A tight canopy saves watts and water.
- Insulate the sump sides. Foam board works and is cheap.
- Reduce room drafts. Close vents that blow on the stand.
- Keep the tank away from windows and exterior doors.
Cost example:
- A 900 watt setup at a 25 percent duty cycle runs about six hours a day. That is 5.4 kWh per day.
- At 15 cents per kWh, that is about 81 cents per day.
A well sized aquarium heater for 180 gallon tank plus a little insulation can cut the duty cycle a lot. Small gains add up over winter.
Proven setups for a 180 gallon tank
Here are simple, safe builds you can copy. I have run or set up each one.
- Warm home, freshwater 180, 72 to 78. Two 300 watt heaters. One controller with two probes. Set to 78 with a one degree range.
- Cool basement, reef 180, 64 to 78. Three 300 watt titanium heaters. Controller set to 78. Heaters set to 79. Sump placement near return and skimmer sections.
- High load cichlid 180, 70 to 80. Two 500 watt PTC heaters. Inline fan for summer. Tight glass lids to save heat.
- Planted 180 with CO2, 74 to 76. Two 200 to 300 watt heaters. Low swing is key for plants. Gentle flow over heaters to avoid hot spots.
If you want brand ideas, look for titanium sticks with replaceable sensors, or trusted glass lines with accurate dials. The exact model matters less than the plan. The plan is what saves fish.
Safety checklist for a large system
A safe aquarium heater for 180 gallon tank setup follows these rules.
- Use a GFCI outlet and a drip loop on every cord.
- Unplug heaters during water changes. Never expose a hot heater to air.
- Use heater guards to prevent fish burns and to avoid impact.
- Mount controllers above the sump. Keep sensors in strong flow.
- Label plugs. Know which heater is which.
- Keep a spare heater on hand. You will need it one day.
Do these steps and you will prevent almost every heater horror story I have seen.
Frequently Asked Questions of aquarium heater for 180 gallon tank
How many watts do I need for a 180 gallon tank?
Plan on 800 to 1000 watts in most homes. In cold rooms, plan closer to 1000 to 1200 watts.
Should I use one big heater or several smaller ones?
Use two or three smaller heaters. It gives even heat and a backup if one fails.
What temperature should I set for a 180 gallon reef?
Aim for 78 to 79 degrees. Keep swings under one degree per day.
Do I really need a controller for my heaters?
Yes, use a controller for safety and stability. It stops stuck on heaters and tightens your temp range.
Where should I place heaters in a sump?
Place near strong flow, like the return section. Keep them low and horizontal with a guard.
Can I use glass heaters in saltwater?
You can, but titanium is safer and resists corrosion. If you use glass, add a guard and check often.
Conclusion
A stable plan beats raw power. Size your system for the coldest night, use two or three heaters, add a controller, and place them in strong flow. That simple setup keeps a 180 rock solid.
Start today. Check your room lows, pick the right wattage, and set a weekly five minute check. If this helped, subscribe for more build guides or share your own 180 setup in the comments.
